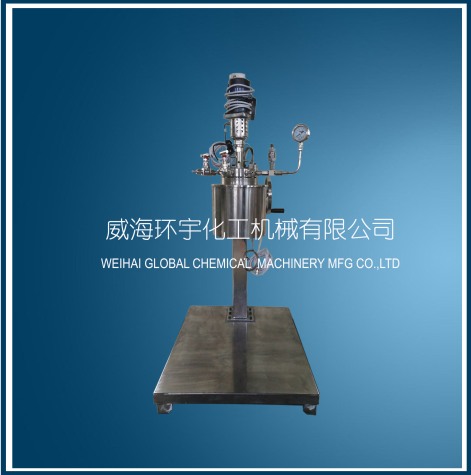

Lifting magnetic reactor has the characteristics of static sealing, no leakage, stable operation, low noise and easy operation. It is an ideal device for users to carry out various chemical reaction tests.

Ring rare earth permanent magnet drive agitator is used in lift magnetic reactor. It has the characteristics of large stirring moment, complete static sealing, no leakage, high temperature resistance, high pressure, high vacuum, high stirring speed, stable operation, low noise, wide application, simple use and easy operation. It is an ideal equipment for laboratory stirring reaction. It is suitable for stirring reactions of materials with different viscosities under different reaction conditions, such as gas-liquid reaction, gas-liquid-solid reaction, liquid-solid reaction, etc. The axle sleeve is made of self-lubricating graphite, ceramics, PTFE filled carbon fibers and other materials. Its main technical parameters are the same as GSH series. Its main features are adding equipment base, bracket and cover lifting device on the basis of GSH series reaction kettle. The kettle cover is lifted by rotating screw driven by lifting handwheel on rotating equipment. By pressing the positioning pin of lifting square iron, the kettle cover can be moved to the side, which is convenient for feeding, discharging and cleaning, reduces the physical labor of users, and is more convenient and more convenient to use. Quick. Volume greater than 10L is equipped with worm gear reducer hoisting kettle cover. The handwheel of rotary worm gear reducer is lifted by wire rope.

Lifting magnetic reactor is divided into 0.5, 1, 2, 3, 5, 10, 15, 20, 25, 30, 50, 100L by volume. It can also customize other volumes of lifting magnetic reactor according to user's requirements.
